Texas Instruments

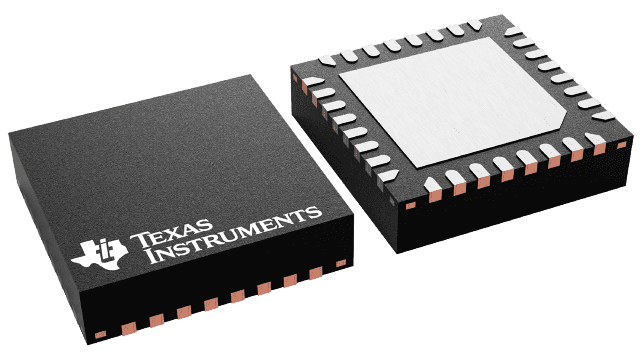

DRV8306HRSMR
DRV8306HRSMR
Regular price
$0.55 USD
Regular price
Sale price
$0.55 USD
Unit price
per
Couldn't load pickup availability
DRV8306HRSMR Texas Instruments - Yeehing Electronics
40-V max sensored trapezoidal control, 3-phase BLDC smart gate driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.758 |
| 100 — 249 | 1.452 |
| 250 — 999 | 1.043 |
| 1,000 + | 0.55 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Brushless DC Motor Controllers |
| Type | Half Bridge |
| Operating Supply Voltage | 6 V to 38 V |
| Output Current | 150 mA |
| Operating Supply Current | 5 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-32 |
| Packaging | Reel |
| Features | Hardware Management I/F, Hall Element Comparators, Integrated Motor Control, Smart Gate Drive, Tach |
| Number of Outputs | 3 Output |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Voltage | 5.5 V |
| Series | DRV8306 |
| Brand | Texas Instruments |
| Load Voltage Rating | 38 V |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| DRV8306HRSMR Datasheet |
More Information
The DRV8306 device is an integrated gate driver for 3-phase brushless DC (BLDC) motor applications. The device provides three half-bridge gate drivers, each capable of driving high-side and low-side N-channel power MOSFETs. The DRV8306 device generates the proper gate drive voltages using an integrated charge pump for the high-side MOSFETs and a linear regulator for the low-side MOSFETs. The smart gate drive architecture supports up to 150-mA source and 300-mA sink peak gate drive current and 15-mA rms gate drive current capability.
