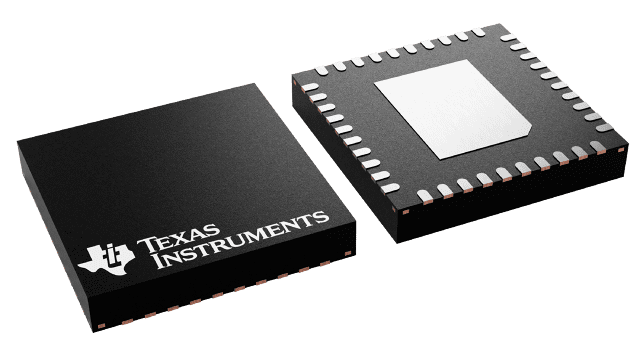

DRV8307RHAT


YeeHing #: Y011-DRV8307RHAT
Inventory: 2400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

DRV8307RHAT Texas Instruments - Yeehing Electronics

42-V max sensored trapezoidal control 3-phase BLDC gate driver

Pricing (USD)

Quantity Unit Price
1 — 99 2.462
100 — 249 2.158
250 — 999 1.513
1,000 + 0.85

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Minimum Operating Temperature -40
Maximum Operating Temperature 85
Factory Pack Quantity 250
Package | Pins VQFN (RHA) | 40

For more information, please refer to datasheet

Documents

DRV8307RHAT Datasheet

More Information

The DRV8307 is a three half-bridge pre-driver that drives six N-type MOSFETs 30 mA with a single power supply. Aimed at sensored three-phase brushless DC motors, the DRV8307 is driven by a single PWM input and supports integrated commutation logic with three Hall sensor inputs. A separate 5-V regulator is also included to be used to power Hall-effect sensors and other external components.
