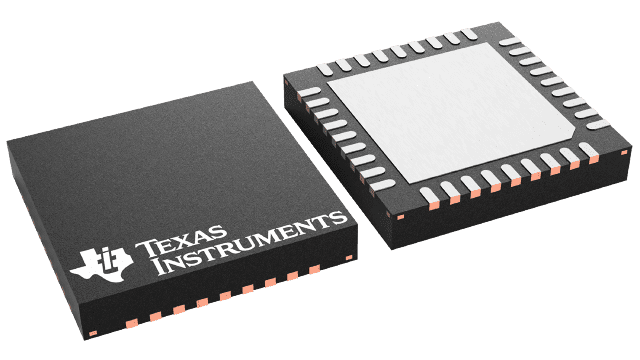

DRV8313RHH Texas Instruments - Yeehing Electronics
65-V max, 3-A peak 3-phase motor driver
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 3.216 |
100 — 249 | 2.818 |
250 — 999 | 1.976 |
1,000 + | 1.11 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Motor / Motion / Ignition Controllers & Drivers |
RoHS | Y |
Product | Brushless DC Motor Controllers |
Type | Half Bridge |
Operating Supply Voltage | 8 V to 60 V |
Output Current | 10 mA |
Operating Supply Current | 1 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Mounting Style | SMD/SMT |
Package / Case | VQFN-36 |
Packaging | Reel |
Features | Integrated FETs |
Number of Outputs | 3 Output |
Operating Frequency | 250 kHz |
Operating Temperature Range | - 40 C to + 125 C |
Output Voltage | 3.3 V |
Series | DRV8313 |
Brand | Texas Instruments |
Load Voltage Rating | 8 V to 60 V |
Moisture Sensitive | Yes |
Product Type | Motor / Motion / Ignition Controllers & Drivers |
Factory Pack Quantity | 2500 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.003683 oz |
For more information, please refer to datasheet
Documents
DRV8313RHH Datasheet |
More Information
The DRV8313 provides three individually controllable half-H-bridge drivers. The device is intended to drive a three-phase brushless-DC motor, although it can also be used to drive solenoids or other loads. Each output driver channel consists of N-channel power MOSFETs configured in a 1/2-H-bridge configuration. Each 1/2-H-bridge driver has a dedicated ground terminal, which allows independent external current sensing.
