Texas Instruments

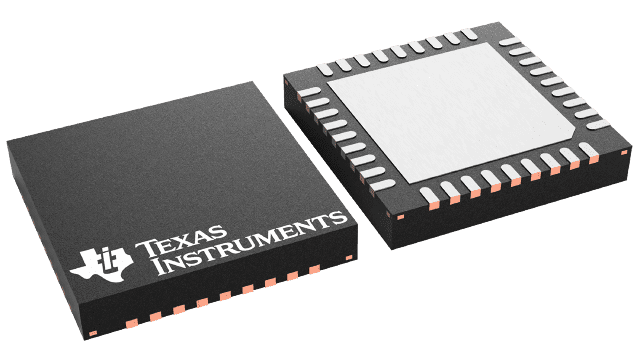

DRV8313RHHR
DRV8313RHHR
Regular price
$0.93 USD
Regular price
Sale price
$0.93 USD
Unit price
per
Couldn't load pickup availability
DRV8313RHHR Texas Instruments - Yeehing Electronics
65-V max, 3-A peak 3-phase motor driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.681 |
| 100 — 249 | 2.349 |
| 250 — 999 | 1.647 |
| 1,000 + | 0.93 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Brushless DC Motor Controllers |
| Type | Half Bridge |
| Operating Supply Voltage | 8 V to 60 V |
| Output Current | 10 mA |
| Operating Supply Current | 1 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-36 |
| Packaging | Reel |
| Features | Integrated FETs |
| Number of Outputs | 3 Output |
| Operating Frequency | 250 kHz |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Voltage | 3.3 V |
| Series | DRV8313 |
| Brand | Texas Instruments |
| Load Voltage Rating | 8 V to 60 V |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.003683 oz |
For more information, please refer to datasheet
Documents
| DRV8313RHHR Datasheet |
More Information
The DRV8313 provides three individually controllable half-H-bridge drivers. The device is intended to drive a three-phase brushless-DC motor, although it can also be used to drive solenoids or other loads. Each output driver channel consists of N-channel power MOSFETs configured in a 1/2-H-bridge configuration. Each 1/2-H-bridge driver has a dedicated ground terminal, which allows independent external current sensing.
