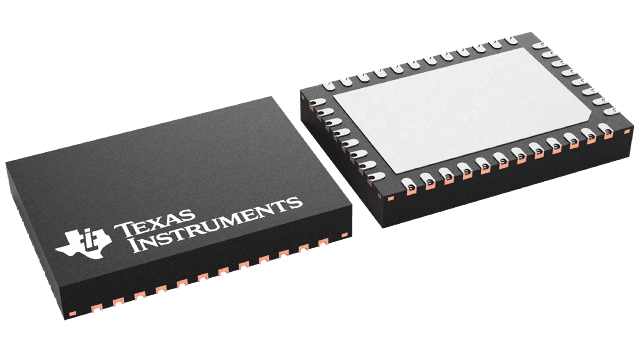

DRV8316RRGFR Texas Instruments - Yeehing Electronics
40-V max 8-A peak 3-phase motor driver with integrated current sensing
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.208 |
| 100 — 249 | 2.811 |
| 250 — 999 | 1.971 |
| 1,000 + | 1.27 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| DRV8316RRGFR Datasheet |
More Information
The DRV8316 provides a single-chip power stage solution for customers driving 12-V and 24-V brushless-DC motors . The DRV8316 integrates three 1/2-H bridges with 40-V absolute maximum capability and a very low RDS(ON) of 95mOhms (high-side plus low-side) to enable high power drive capability. Current is sensed using an integrated current sensing feature which eliminates the need for external sense resistors. Power management features of an adjustable buck regulator and LDO generate the necessary voltage rails for the device and can be used to power external circuits.
