Texas Instruments

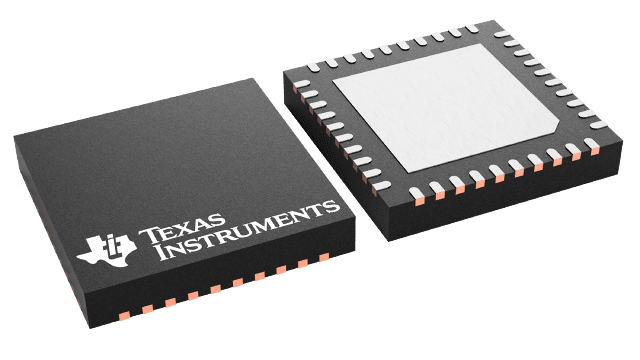

DRV8320RSRHAT
DRV8320RSRHAT
Regular price
$1.41 USD
Regular price
Sale price
$1.41 USD
Unit price
per
Couldn't load pickup availability
DRV8320RSRHAT Texas Instruments - Yeehing Electronics
65-V max 3-phase smart gate driver with buck regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.082 |
| 100 — 249 | 3.577 |
| 250 — 999 | 2.508 |
| 1,000 + | 1.41 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Fan / Motor Controllers / Drivers |
| Type | High Side, Low Side |
| Operating Supply Voltage | 6 V to 60 V |
| Output Current | 1 A |
| Operating Supply Current | 30 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-40 |
| Packaging | Reel |
| Features | Buck Step Down Converter, Hardware Management I/F, SPI/I2C, Smart Gate Drive |
| Number of Outputs | 3 Output |
| Operating Frequency | 700 kHz |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Voltage | 3.3 V |
| Series | DRV8320R |
| Brand | Texas Instruments |
| Load Voltage Rating | 60 V |
| Development Kit | BOOSTXL-DRV8323RS |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.003397 oz |
For more information, please refer to datasheet
Documents
| DRV8320RSRHAT Datasheet |
