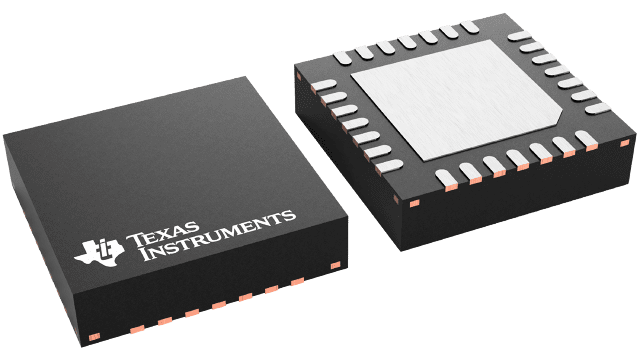

DRV8328BRUYR Texas Instruments - Yeehing Electronics
60 V 1000/2000 mA 3-phase gate driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.485 |
| 100 — 249 | 1.227 |
| 250 — 999 | 0.881 |
| 1,000 + | 0.46 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| DRV8328BRUYR Datasheet |
More Information
The DRV8328 family of devices is an integrated gate driver for three-phase applications. The devices provide three half-bridge gate drivers, each capable of driving high-side and low-side N-channel power MOSFETs. The device generates the correct gate drive voltages using an internal charge pump and enhances the high-side MOSFETs using a bootstrap circuit. A trickle charge pump is included to support 100% duty cycle. The Gate Drive architecture supports peak gate drive currents up to 1-A source and 2-A sink. The DRV8328 can operate from a single power supply and supports a wide input supply range of 4.5 to 60 V.
