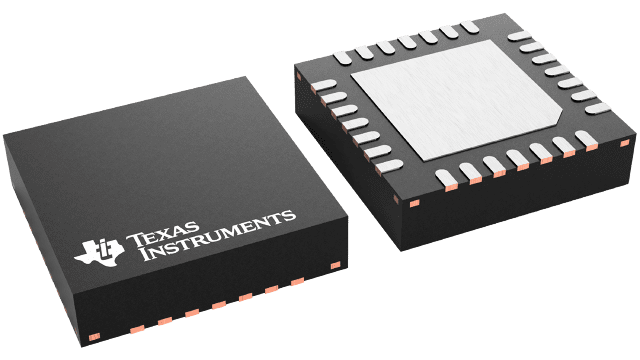

DRV8328CRUYR Texas Instruments - Yeehing Electronics

60 V 1000/2000 mA 3-phase gate driver

Pricing (USD)

Quantity	Unit Price
1 — 99	1.555
100 — 249	1.284
250 — 999	0.922
1,000 +	0.49

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

DRV8328CRUYR Datasheet

More Information

The DRV8328 family of devices is an integrated gate driver for three-phase applications. The devices provide three half-bridge gate drivers, each capable of driving high-side and low-side N-channel power MOSFETs. The device generates the correct gate drive voltages using an internal charge pump and enhances the high-side MOSFETs using a bootstrap circuit. A trickle charge pump is included to support 100% duty cycle. The Gate Drive architecture supports peak gate drive currents up to 1-A source and 2-A sink. The DRV8328 can operate from a single power supply and supports a wide input supply range of 4.5 to 60 V.
