Texas Instruments
DRV8332DKDR
DRV8332DKDR
Regular price
$3.18 USD
Regular price
Sale price
$3.18 USD
Unit price
per
Couldn't load pickup availability

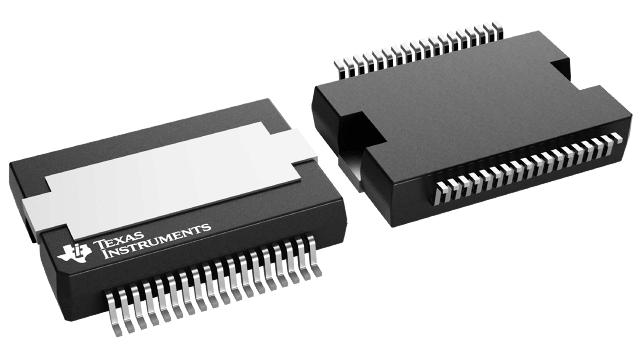

DRV8332DKDR Texas Instruments - Yeehing Electronics
70-V max, 9.7A peak 3-phase motor driver with heatsink connection
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.372 |
| 100 — 249 | 6.825 |
| 250 — 999 | 5.364 |
| 1,000 + | 3.18 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Fan / Motor Controllers / Drivers |
| Type | PWM Motor Driver |
| Operating Supply Voltage | 0 V to 52.5 V |
| Output Current | 8 A |
| Operating Supply Current | 9 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HSSOP-36 |
| Packaging | Reel |
| Features | Integrated FETs |
| Number of Outputs | 3 Output |
| Operating Frequency | 500 kHz |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Voltage | 3.3 V |
| Series | DRV8332 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Rds On - Drain-Source Resistance | 220 mOhms |
| Factory Pack Quantity | 500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.104062 oz |
For more information, please refer to datasheet
Documents
| DRV8332DKDR Datasheet |
More Information
The DRV83x2 are high-performance, integrated three-phase motor drivers with an advanced protection system.
