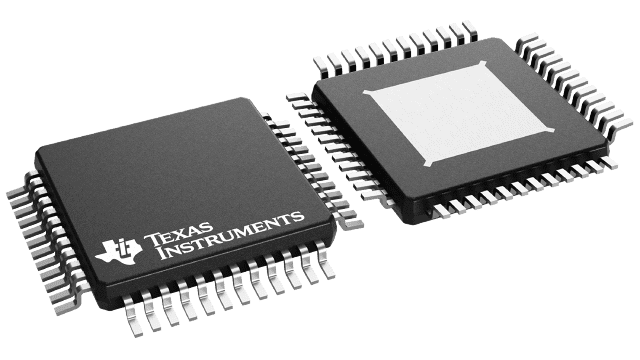

DRV8340HPHPRQ1 Texas Instruments - Yeehing Electronics
Automotive 12-V to 24-V battery 3-phase smart gate driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.19 |
| 100 — 249 | 3.416 |
| 250 — 999 | 2.685 |
| 1,000 + | 1.59 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Fan / Motor Controllers / Drivers |
| Type | Half Bridge |
| Operating Supply Voltage | 3.3 V, 5 V |
| Output Current | 25 mA |
| Operating Supply Current | 12 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTQP-48 |
| Packaging | Reel |
| Number of Outputs | 3 Output |
| Operating Frequency | 200 kHz |
| Output Voltage | 3.3 V |
| Series | DRV8340-Q1 |
| Brand | Texas Instruments |
| Load Voltage Rating | 12 V, 24 V |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| DRV8340HPHPRQ1 Datasheet |
More Information
The DRV8340-Q1 device is an integrated gate driver for three-phase applications. The device provides three half-bridge gate drivers, each capable of driving high-side and low-side N-channel power MOSFETs. The dedicated Source and Drain pins enable the independent MOSFET control for solenoid application. The DRV8340-Q1 generates the correct gate drive voltages using an integrated charge pump sufficient for the high-side MOSFETs and a linear regulator for the low-side MOSFETs. The Smart Gate Drive architecture supports peak gate drive currents up to 1-A source and 2-A. The DRV8340-Q1 can operate from a single power supply and supports a wide input supply range of 5.5 to 60 V for the gate driver.
