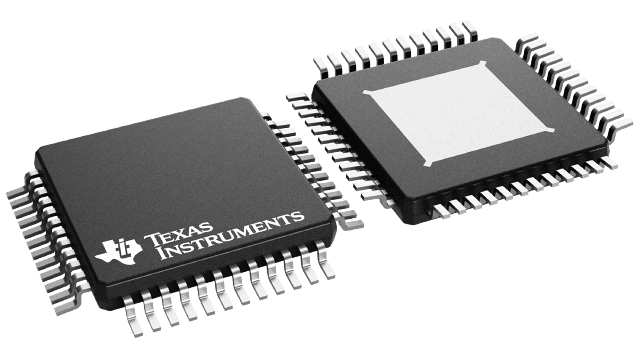

DRV8343SPHPRQ1 Texas Instruments - Yeehing Electronics
Automotive 12-V to 24-V battery 3-phase smart gate driver with current shunt amplifiers
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.41 |
| 100 — 249 | 3.596 |
| 250 — 999 | 2.826 |
| 1,000 + | 1.68 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| DRV8343SPHPRQ1 Datasheet |
More Information
The DRV8343-Q1 device is an integrated gate driver for three-phase applications. The device provides three half-bridge gate drivers, each capable of driving high-side and low-side N-channel power MOSFETs. The dedicated Source and Drain pins enable the independent MOSFET control for solenoid application. The DRV8343-Q1 generates the correct gate drive voltages using an integrated charge pump sufficient for the high-side MOSFETs and a linear regulator for the low-side MOSFETs. The Smart Gate Drive architecture supports peak gate drive currents up to 1-A source and 2-A. The DRV8343-Q1 can operate from a single power supply and supports a wide input supply range of 5.5 to 60 V for the gate driver.
