Texas Instruments

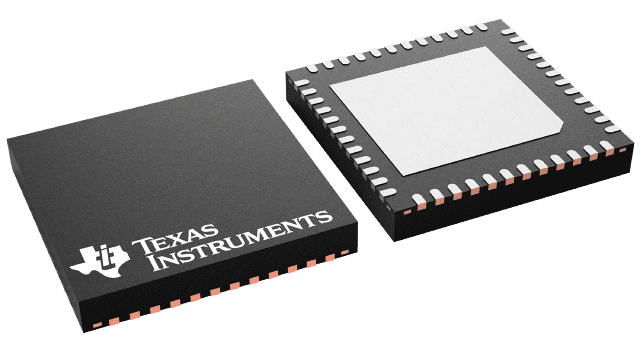

DRV8350RSRGZT
DRV8350RSRGZT
Regular price
$1.82 USD
Regular price
Sale price
$1.82 USD
Unit price
per
Couldn't load pickup availability
DRV8350RSRGZT Texas Instruments - Yeehing Electronics
102-V max 3-phase smart gate driver with buck regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.773 |
| 100 — 249 | 3.891 |
| 250 — 999 | 3.058 |
| 1,000 + | 1.82 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Brushless DC Motor Controllers |
| Type | 3 Phase |
| Operating Supply Voltage | 6 V to 95 V |
| Output Current | 1 A |
| Operating Supply Current | 8.5 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-48 |
| Packaging | Reel |
| Features | Buck Step Down Converter, Hardware Management I/F, SPI/I2C, Smart Gate Drive |
| Number of Outputs | 3 Output |
| Operating Frequency | 200 kHz |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Voltage | 9 V to 100 V |
| Series | DRV8350R |
| Brand | Texas Instruments |
| Load Voltage Rating | 75 V |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| DRV8350RSRGZT Datasheet |
More Information
The DRV835x family of devices are highly-integrated gate drivers for three-phase brushless DC (BLDC) motor applications. These applications include field-oriented control (FOC), sinusoidal current control, and trapezoidal current control of BLDC motors. The device variants provide optional integrated current shunt amplifiers to support different motor control schemes and a buck regulator to power the gate driver or external controller.
