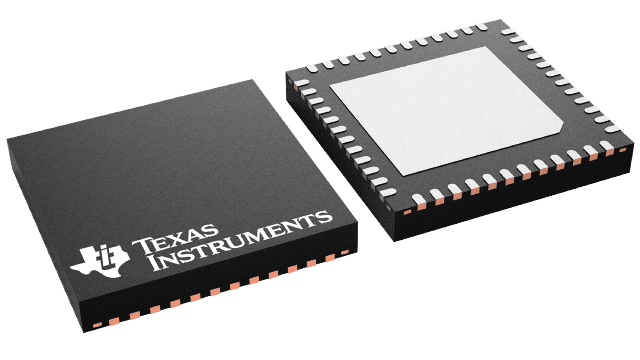

DRV8353RHRGZT Texas Instruments - Yeehing Electronics

102-V max 3-phase smart gate driver with buck regulator & current shunt amplifiers

Pricing (USD)

Quantity	Unit Price
1 — 99	5.007
100 — 249	4.082
250 — 999	3.208
1,000 +	1.90

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Motor / Motion / Ignition Controllers & Drivers
RoHS	Y
Product	Brushless DC Motor Controllers
Type	3 Phase
Operating Supply Voltage	6 V to 95 V
Output Current	1 A
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	VQFN-48
Packaging	Reel
Features	Buck Step Down Converter, Current Sense Amplifier, Hardware Management I/F, SPI/I2C, Smart Gate Dri
Number of Outputs	3 Output
Operating Frequency	200 kHz
Operating Temperature Range	- 40 C to + 125 C
Output Voltage	100 V
Series	DRV8353R
Brand	Texas Instruments
Load Voltage Rating	75 V
Moisture Sensitive	Yes
Product Type	Motor / Motion / Ignition Controllers & Drivers
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

DRV8353RHRGZT Datasheet

More Information

The DRV835x family of devices are highly-integrated gate drivers for three-phase brushless DC (BLDC) motor applications. These applications include field-oriented control (FOC), sinusoidal current control, and trapezoidal current control of BLDC motors. The device variants provide optional integrated current shunt amplifiers to support different motor control schemes and a buck regulator to power the gate driver or external controller.
