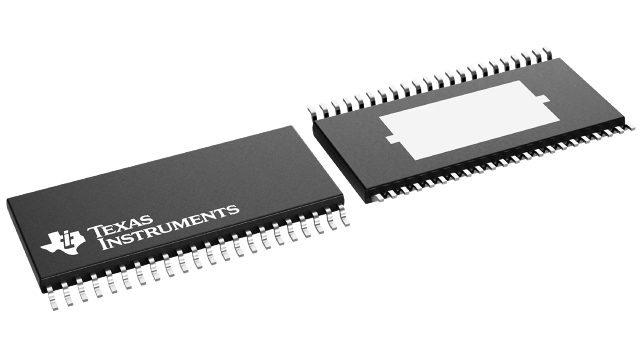

DRV8412DDWR Texas Instruments - Yeehing Electronics
70-V, 6-A Dual H-bridge motor driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.442 |
| 100 — 249 | 6.882 |
| 250 — 999 | 5.409 |
| 1,000 + | 2.61 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Fan / Motor Controllers / Drivers |
| Type | PWM Motor Driver |
| Operating Supply Voltage | 0 V to 52.5 V |
| Output Current | 3 A |
| Operating Supply Current | 9 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-44 |
| Packaging | Reel |
| Features | Outputs can be paralleled |
| Number of Outputs | 2 Output |
| Operating Frequency | 500 kHz |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Voltage | 0.2 V |
| Series | DRV8412 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Rds On - Drain-Source Resistance | 220 mOhms |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.009305 oz |
For more information, please refer to datasheet
Documents
| DRV8412DDWR Datasheet |
More Information
The DRV841x2 are high-performance, integrated dual full-bridge motor driver with an advanced protection system.
