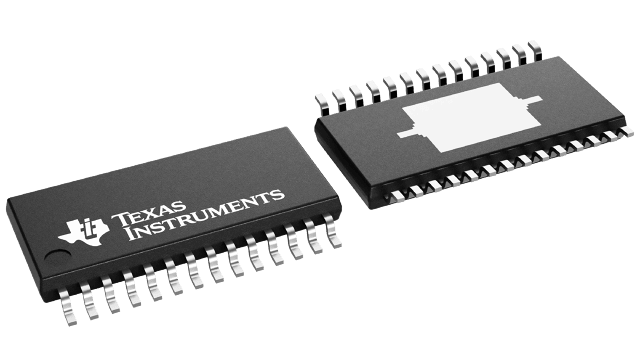

DRV8424PWPR Texas Instruments - Yeehing Electronics

35-V, 2.5-A bipolar stepper driver with integrated current sensing & 1/256 microstepping

Pricing (USD)

Quantity	Unit Price
1 — 99	3.194
100 — 249	2.798
250 — 999	1.962
1,000 +	1.11

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

DRV8424PWPR Datasheet

More Information

The DRV8424/25 are stepper motor drivers for industrial and consumer applications. The device is fully integrated with two N-channel power MOSFET H-bridge drivers, a microstepping indexer, and integrated current sensing. The DRV8424 is capable of driving up to 2.5-A full-scale output current; and the DRV8425 is capable of driving up to 2-A full-scale output current (dependent on PCB design).
