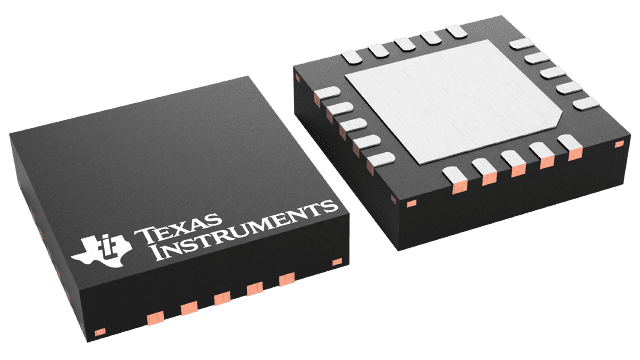

DRV8662RGPR Texas Instruments - Yeehing Electronics
Haptic driver for piezo with integrated 105-V boost converter in QFN package
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.884 |
100 — 249 | 1.556 |
250 — 999 | 1.118 |
1,000 + | 0.65 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Motor / Motion / Ignition Controllers & Drivers |
RoHS | Y |
Product | Haptic Drivers |
Type | Piezo Haptic Driver |
Operating Supply Voltage | 3 V to 5.5 V |
Operating Supply Current | 5 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 70 C |
Mounting Style | SMD/SMT |
Package / Case | QFN-20 |
Packaging | Reel |
Input Type | Analog, PWM |
Operating Temperature Range | - 40 C to + 70 C |
Output Voltage | 40 V to 100 V |
Series | DRV8662 |
Brand | Texas Instruments |
Development Kit | DRV8662EVM |
Moisture Sensitive | Yes |
Product Type | Motor / Motion / Ignition Controllers & Drivers |
Factory Pack Quantity | 3000 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.002469 oz |
For more information, please refer to datasheet
Documents
DRV8662RGPR Datasheet |
More Information
The DRV8662 is a single-chip piezo haptic driver with integrated 105 V boost switch, integrated power diode, and integrated fully-differential amplifier. This versatile device is capable of driving both high-voltage and low-voltage piezo haptic actuators. The input signal can be either differential or single-ended. The DRV8662 supports four GPIO-controlled gains: 28.8 dB, 34.8 dB, 38.4 dB, and 40.7 dB.
