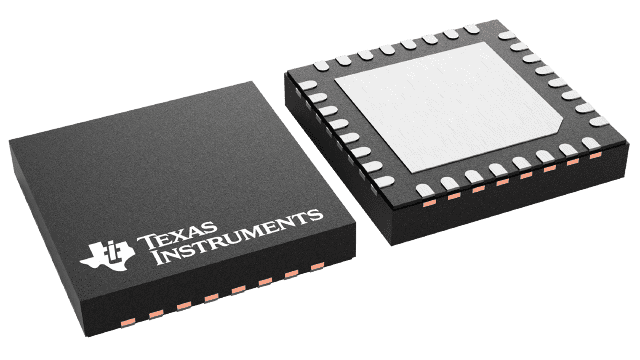

DRV8702QRHBRQ1 Texas Instruments - Yeehing Electronics
Automotive 47-V H-bridge smart gate driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.173 |
| 100 — 249 | 1.795 |
| 250 — 999 | 1.289 |
| 1,000 + | 0.68 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Brushed DC Motor Drivers |
| Type | Half Bridge |
| Operating Supply Voltage | 5.5 V to 45 V |
| Output Current | 260 mA, 440 mA |
| Operating Supply Current | 7.5 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-32 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Features | Smart Gate Drive, Current Sense Amplifier, Current Regulation, Single H-bridge |
| Operating Frequency | 100 kHz |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | DRV8702-Q1 |
| Brand | Texas Instruments |
| Load Voltage Rating | 45 V |
| Development Kit | DRV8702-Q1EVM |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001979 oz |
For more information, please refer to datasheet
Documents
| DRV8702QRHBRQ1 Datasheet |
More Information
The DRV870x-Q1 devices are small single H-bridge gate drivers that use four external N-channel MOSFETs targeted to drive a bidirectional brushed-DC motor.
