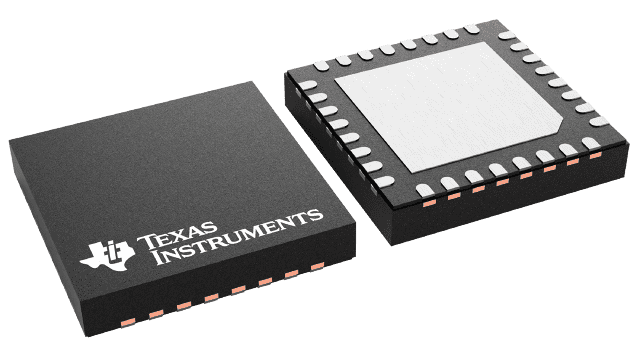

DRV8703DQRHBTQ1 Texas Instruments - Yeehing Electronics
Automotive 47-V half-bridge smart gate driver with SPI control
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.04 |
| 100 — 249 | 1.788 |
| 250 — 999 | 1.253 |
| 1,000 + | 0.71 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Brushed DC Motor Drivers |
| Type | High Side, Low Side |
| Operating Supply Voltage | 5.5 V to 45 V |
| Output Current | 500 mA |
| Operating Supply Current | 7.5 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-32 |
| Packaging | Reel |
| Features | Smart Gate Drive, Current Sense Amplifier, On-Chip Power Management, Current Regulation, SPI/I2C Ma |
| Number of Outputs | 2 Output |
| Operating Frequency | 100 kHz |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | DRV8703D-Q1 |
| Brand | Texas Instruments |
| Development Kit | DRV8703D-Q1EVM |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001982 oz |
For more information, please refer to datasheet
Documents
| DRV8703DQRHBTQ1 Datasheet |
More Information
The DRV870xD-Q1 devices are small half bridge gate drivers that use two external N-channel MOSFETs targeted to drive unidirectional brushed-DC motors or solenoid loads.
