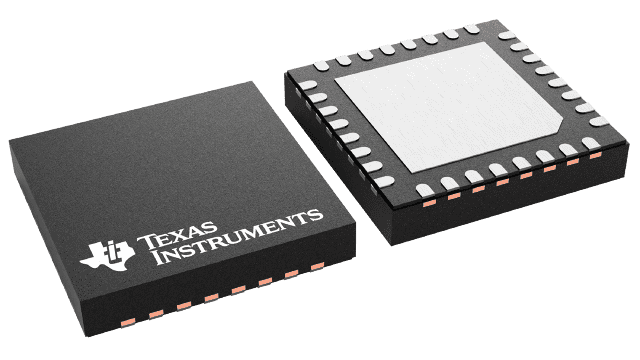

DRV8703QRHBTQ1 Texas Instruments - Yeehing Electronics
Automotive 47-V H-bridge smart gate driver with SPI control
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.367 |
100 — 249 | 2.074 |
250 — 999 | 1.454 |
1,000 + | 0.82 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Motor / Motion / Ignition Controllers & Drivers |
RoHS | Y |
Product | Brushed DC Motor Drivers |
Type | Half Bridge |
Operating Supply Voltage | 5.5 V to 45 V |
Output Current | 0.5 A, 0.25 A |
Operating Supply Current | 30 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Mounting Style | SMD/SMT |
Package / Case | VQFN-32 |
Packaging | Reel |
Features | Smart Gate Drive, Current Sense Amplifier, Current Regulation, SPI/I2C, Single H-bridge |
Operating Temperature Range | - 40 C to + 125 C |
Output Voltage | 10.5 V |
Series | DRV8703-Q1 |
Brand | Texas Instruments |
Load Voltage Rating | 45 V |
Moisture Sensitive | Yes |
Product Type | Motor / Motion / Ignition Controllers & Drivers |
Factory Pack Quantity | 250 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.001982 oz |
For more information, please refer to datasheet
Documents
DRV8703QRHBTQ1 Datasheet |
More Information
The DRV870x-Q1 devices are small single H-bridge gate drivers that use four external N-channel MOSFETs targeted to drive a bidirectional brushed-DC motor.
