Texas Instruments

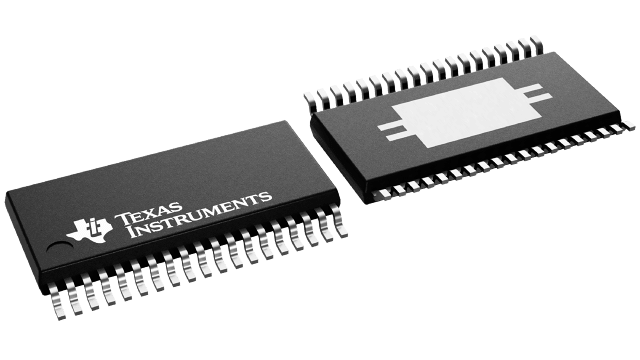

DRV8704DCPR
DRV8704DCPR
Regular price
$4.66 USD
Regular price
Sale price
$4.66 USD
Unit price
per
Couldn't load pickup availability
DRV8704DCPR Texas Instruments - Yeehing Electronics
60-V dual H-bridge smart gate driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.093 |
| 100 — 249 | 2.71 |
| 250 — 999 | 1.9 |
| 1,000 + | 4.66 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Brushed DC Motor Drivers |
| Type | Half Bridge |
| Operating Supply Voltage | 8 V to 52 V |
| Output Current | 10 mA |
| Operating Supply Current | 17 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-38 |
| Packaging | Reel |
| Features | Current Regulation, SPI/I2C, Multi H-bridge |
| Number of Outputs | 2 Output |
| Operating Frequency | 500 kHz |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Voltage | 5 V |
| Series | DRV8704 |
| Brand | Texas Instruments |
| Load Voltage Rating | 8 V to 52 V |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.004522 oz |
For more information, please refer to datasheet
Documents
| DRV8704DCPR Datasheet |
More Information
The DRV8704 is a dual-brushed motor controller for industrial equipment applications. The device controls external N-channel MOSFETs configured as two H-bridges.
