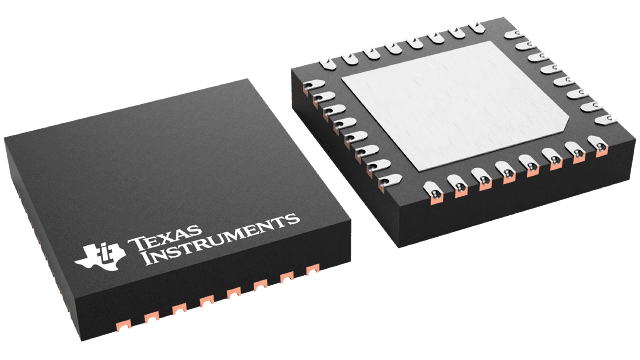

DRV8705SQRHBRQ1 Texas Instruments - Yeehing Electronics

Automotive, 40-V, H-bridge Smart Gate Driver w/offline diagnostics

Pricing (USD)

Quantity	Unit Price
1 — 99	2.081
100 — 249	1.719
250 — 999	1.235
1,000 +	0.65

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

DRV8705SQRHBRQ1 Datasheet

More Information

The DRV8705-Q1 is a highly integrated H-bridge gate driver, capable of driving high-side and low-side N-channel power MOSFETs. It generates the proper gate drive voltages using an integrated doubler charge pump for the high-side and a linear regulator for the low-side.
