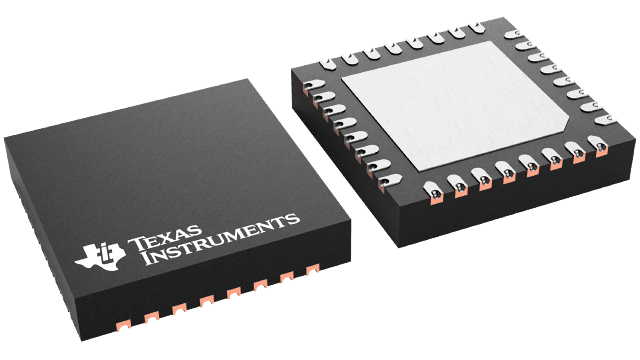

DRV8706SQRHBRQ1 Texas Instruments - Yeehing Electronics
Automotive 40-V H-bridge smart gate driver with offline diagnostics & inline current sense am
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.991 |
| 100 — 249 | 1.645 |
| 250 — 999 | 1.181 |
| 1,000 + | 0.12 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| DRV8706SQRHBRQ1 Datasheet |
More Information
The DRV8706-Q1 is a highly integrated H-bridge gate driver, capable of driving high-side and low-side N-channel power MOSFETs. It generates the proper gate drive voltages using an integrated doubler charge pump for the high-side and a linear regulator for the low-side.
