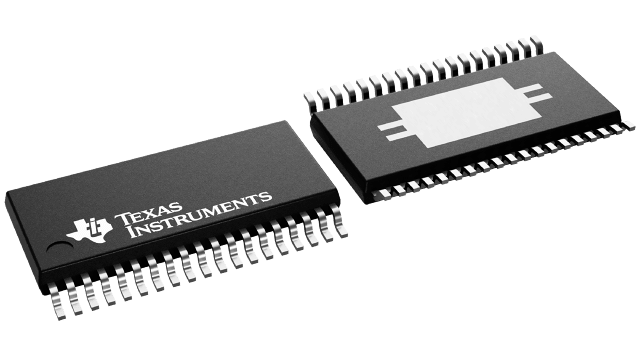

DRV8711DCP Texas Instruments - Yeehing Electronics
52-V, bipolar stepper motor gate driver with 1/256 microstepping & stall detect
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 4.223 |
100 — 249 | 3.443 |
250 — 999 | 2.706 |
1,000 + | 1.84 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Motor / Motion / Ignition Controllers & Drivers |
RoHS | Y |
Product | Stepper Motor Controllers / Drivers |
Type | Stepping Motor Controller |
Operating Supply Voltage | 8 V to 52 V |
Output Current | 200 mA |
Operating Supply Current | 17 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | HTSSOP-38 |
Packaging | Tube |
Features | SPI/I2C Management I/F, Stall/Lock Detection |
Operating Temperature Range | - 40 C to + 85 C |
Output Voltage | 5 V |
Series | DRV8711 |
Brand | Texas Instruments |
Development Kit | DRV8711EVM |
Moisture Sensitive | Yes |
Product Type | Motor / Motion / Ignition Controllers & Drivers |
Factory Pack Quantity | 50 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.004586 oz |
For more information, please refer to datasheet
Documents
DRV8711DCP Datasheet |
More Information
The DRV8711 device is a stepper motor controller that uses external N-channel MOSFETs to drive a bipolar stepper motor or two brushed DC motors. A microstepping indexer is integrated, which is capable of step modes from full step to 1/256-step.
