Texas Instruments
DRV8711DCPR
DRV8711DCPR
Regular price
$1.19 USD
Regular price
Sale price
$1.19 USD
Unit price
per
Couldn't load pickup availability

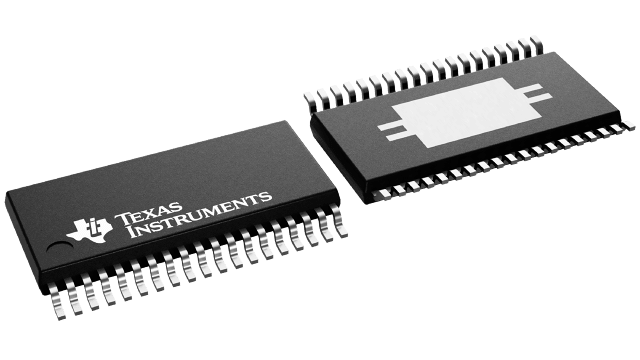

DRV8711DCPR Texas Instruments - Yeehing Electronics
52-V, bipolar stepper motor gate driver with 1/256 microstepping & stall detect
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.434 |
| 100 — 249 | 3.009 |
| 250 — 999 | 2.11 |
| 1,000 + | 1.19 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Stepper Motor Controllers / Drivers |
| Type | Stepping Motor Controller |
| Operating Supply Voltage | 8 V to 52 V |
| Output Current | 200 mA |
| Operating Supply Current | 17 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-38 |
| Packaging | Reel |
| Features | SPI/I2C Management I/F, Stall/Lock Detection |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Voltage | 5 V |
| Series | DRV8711 |
| Brand | Texas Instruments |
| Development Kit | DRV8711EVM |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.004586 oz |
For more information, please refer to datasheet
Documents
| DRV8711DCPR Datasheet |
More Information
The DRV8711 device is a stepper motor controller that uses external N-channel MOSFETs to drive a bipolar stepper motor or two brushed DC motors. A microstepping indexer is integrated, which is capable of step modes from full step to 1/256-step.
