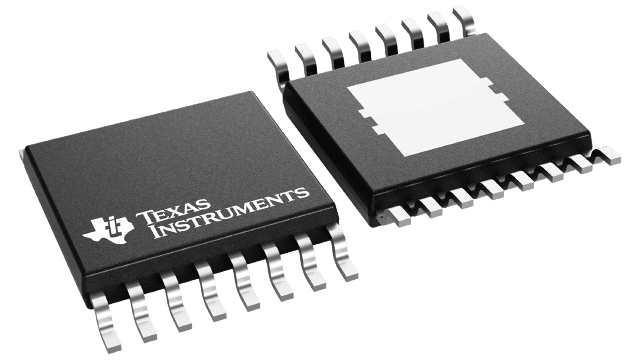

DRV8801PWP Texas Instruments - Yeehing Electronics

40-V, 2.8-A H-bridge motor driver with current feedback

Pricing (USD)

Quantity	Unit Price
1 — 99	2.25
100 — 249	1.972
250 — 999	1.382
1,000 +	0.78

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Motor / Motion / Ignition Controllers & Drivers
RoHS	Y
Product	Fan / Motor Controllers / Drivers
Type	DMOS Driver
Operating Supply Voltage	8 V to 36 V
Output Current	2 A
Operating Supply Current	6 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	HTSSOP-16
Packaging	Reel
Features	Current Sense Amplifier, Single H-bridge
Number of Outputs	1 Output
Operating Temperature Range	- 40 C to + 85 C
Series	DRV8801
Brand	Texas Instruments
Development Kit	DRV8801EVM
Moisture Sensitive	Yes
Product Type	Motor / Motion / Ignition Controllers & Drivers
Rds On - Drain-Source Resistance	830 mOhms
Factory Pack Quantity	2000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.002212 oz

For more information, please refer to datasheet

Documents

DRV8801PWP Datasheet

More Information

The DRV880x provides a versatile motor driver solution with a variety of capabilities. The device contains a full H-bridge which can be used to drive a brushed DC motor, one winding of a stepper motor, or other devices such as solenoids. A simple PHASE-ENABLE interface allows easy interfacing to controller circuits.
