Texas Instruments
DRV8801RTYR
DRV8801RTYR
Regular price
$1.58 USD
Regular price
Sale price
$1.58 USD
Unit price
per
Couldn't load pickup availability

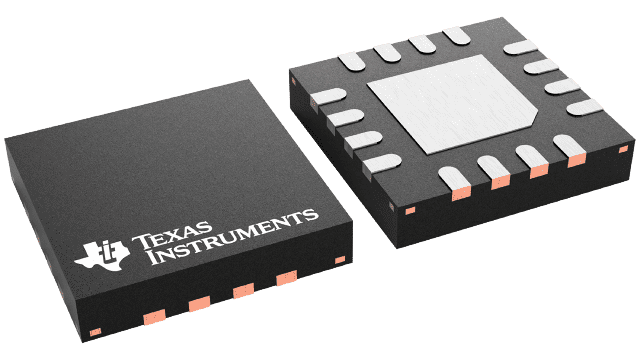

DRV8801RTYR Texas Instruments - Yeehing Electronics
40-V, 2.8-A H-bridge motor driver with current feedback
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.559 |
| 100 — 249 | 1.288 |
| 250 — 999 | 0.925 |
| 1,000 + | 1.58 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Fan / Motor Controllers / Drivers |
| Type | DMOS Driver |
| Operating Supply Voltage | 8 V to 36 V |
| Output Current | 2 A |
| Operating Supply Current | 6 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-16 |
| Packaging | Reel |
| Features | Current Sense Amplifier, Single H-bridge |
| Number of Outputs | 1 Output |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | DRV8801 |
| Brand | Texas Instruments |
| Development Kit | DRV8801EVM |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Rds On - Drain-Source Resistance | 830 mOhms |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001238 oz |
For more information, please refer to datasheet
Documents
| DRV8801RTYR Datasheet |
More Information
The DRV880x provides a versatile motor driver solution with a variety of capabilities. The device contains a full H-bridge which can be used to drive a brushed DC motor, one winding of a stepper motor, or other devices such as solenoids. A simple PHASE-ENABLE interface allows easy interfacing to controller circuits.
