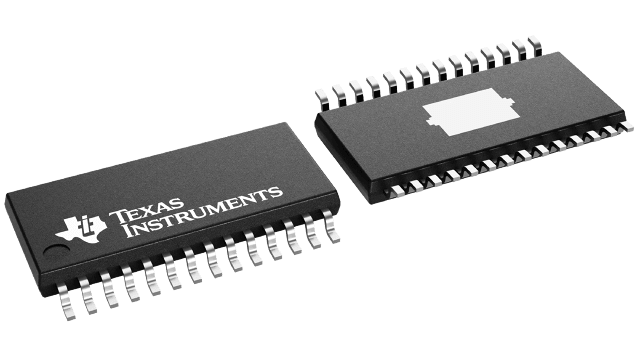

DRV8802PWPR Texas Instruments - Yeehing Electronics
45-V, 1.6-A dual H-bridge motor driver with current regulation
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.951 |
| 100 — 249 | 2.586 |
| 250 — 999 | 1.813 |
| 1,000 + | 1.06 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Brushed DC Motor Drivers |
| Type | DC Motor |
| Operating Supply Voltage | 8 V to 45 V |
| Output Current | 1.1 A |
| Operating Supply Current | 8 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-28 |
| Packaging | Reel |
| Features | Current Regulation, Multi H-bridge |
| Number of Outputs | 2 Output |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | DRV8802 |
| Brand | Texas Instruments |
| Development Kit | DRV8802EVM |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Rds On - Drain-Source Resistance | 1.25 Ohms |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.004233 oz |
For more information, please refer to datasheet
Documents
| DRV8802PWPR Datasheet |
More Information
The DRV8802 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has two H-bridge drivers, and is intended to drive DC motors. The output driver block for each consists of N-channel power MOSFETs configured as H-bridges to drive the motor windings. The DRV8802 can supply up to 1.6-A peak or 1.1-A RMS output current (with proper heatsinking at 24 V and 25°C) per H-bridge.
