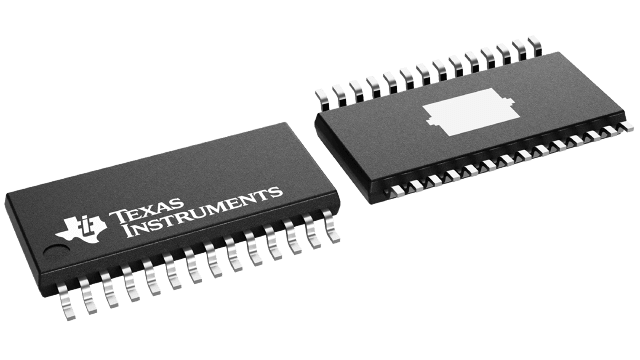

DRV8802QPWPRQ1 Texas Instruments - Yeehing Electronics
Automotive, 47-V, 1.6-A, dual H-bridge motor driver with current regulation
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.721 |
| 100 — 249 | 3.26 |
| 250 — 999 | 2.286 |
| 1,000 + | 1.29 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Fan / Motor Controllers / Drivers |
| Operating Supply Voltage | 8 V to 45 V |
| Output Current | 1.6 A |
| Operating Supply Current | 5 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-28 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Features | Current Regulation, Multi H-bridge |
| Number of Outputs | 1 Output |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | DRV8802-Q1 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.004233 oz |
For more information, please refer to datasheet
Documents
| DRV8802QPWPRQ1 Datasheet |
More Information
The DRV8802-Q1 device provides an integrated motor driver solution for automotive applications. The device has two H-bridge drivers, and is intended to drive DC motors. The output driver block for each consists of N-channel power MOSFET’s configured as H-bridges to drive the motor windings. The DRV8802-Q1 device can supply up to 1.6-A peak or 1.1-A RMS output current (with proper heatsinking at 24 V and 25°C) per H-bridge.
