Texas Instruments

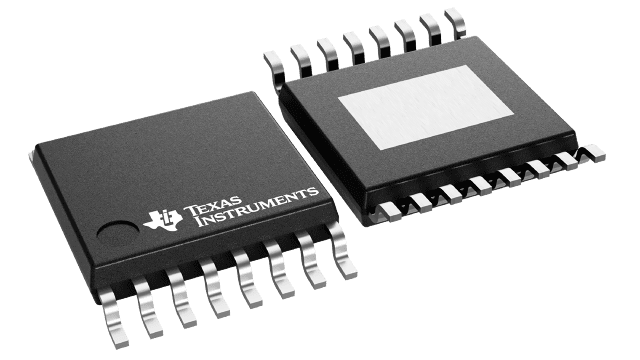

DRV8803PWPR
DRV8803PWPR
Regular price
$0.89 USD
Regular price
Sale price
$0.89 USD
Unit price
per
Couldn't load pickup availability
DRV8803PWPR Texas Instruments - Yeehing Electronics
60-V, 2.3-A, quad low-side motor driver with PWM control
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.561 |
| 100 — 249 | 2.244 |
| 250 — 999 | 1.574 |
| 1,000 + | 0.89 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Fan / Motor Controllers / Drivers |
| Type | Low Side |
| Operating Supply Voltage | 8.2 V to 60 V |
| Output Current | 2 A |
| Operating Supply Current | 1.6 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-16 |
| Packaging | Reel |
| Features | Unipolar, Integrated Catch Diodes |
| Number of Outputs | 4 Output |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Voltage | 60 V |
| Series | DRV8803 |
| Brand | Texas Instruments |
| Development Kit | DRV8803EVM |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Rds On - Drain-Source Resistance | 500 mOhms |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.002212 oz |
For more information, please refer to datasheet
Documents
| DRV8803PWPR Datasheet |
More Information
The DRV8803 provides a 4-channel low side driver with overcurrent protection. It has built-in diodes to clamp turnoff transients generated by inductive loads and can be used to drive unipolar stepper motors, DC motors, relays, solenoids, or other loads.
