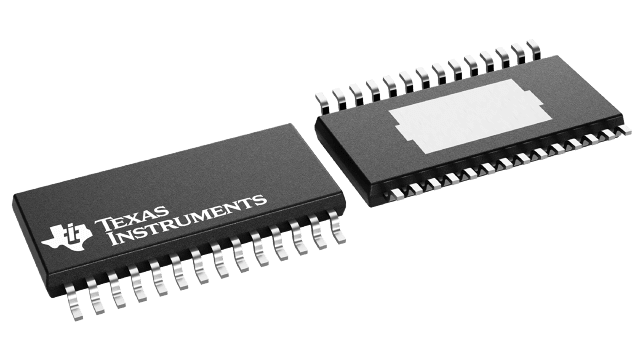

DRV8813PWPR Texas Instruments - Yeehing Electronics
45-V, 2.5-A bipolar stepper or dual H-bridge motor driver with current regulation
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.466 |
| 100 — 249 | 3.037 |
| 250 — 999 | 2.13 |
| 1,000 + | 1.20 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | 85 |
| Factory Pack Quantity | 2,000 |
| Package | Pins | HTSSOP (PWP) | 28 |
For more information, please refer to datasheet
Documents
More Information
The DRV8813 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has two H-bridge drivers, and can drive a bipolar stepper motor or two DC motors. The output driver block for each consists of N-channel power MOSFETs configured as full H-bridges to drive the motor windings. The DRV8813 can supply up to 2.5-A peak or 1.75-A RMS output current (with proper heatsinking at 24 V and 25°C).
