Texas Instruments
DRV8814PWP
DRV8814PWP
Regular price
$1.65 USD
Regular price
Sale price
$1.65 USD
Unit price
per
Couldn't load pickup availability

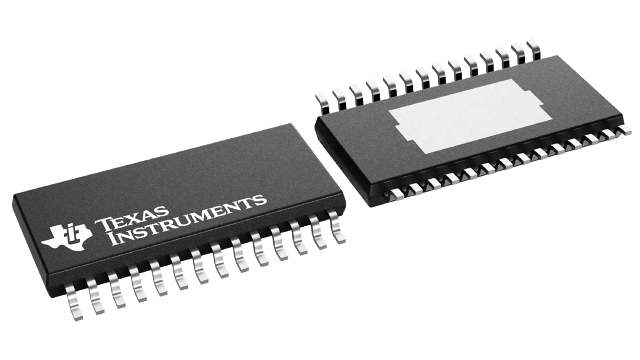

DRV8814PWP Texas Instruments - Yeehing Electronics
47-V, 2.5-A dual brushed DC motor driver with inrush protection
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.342 |
| 100 — 249 | 3.54 |
| 250 — 999 | 2.782 |
| 1,000 + | 1.65 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Brushed DC Motor Drivers |
| Type | Half Bridge |
| Operating Supply Voltage | 8 V to 45 V |
| Output Current | 1.7 A |
| Operating Supply Current | 5 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-28 |
| Packaging | Reel |
| Features | Current Regulation, Multi H-bridge |
| Number of Outputs | 2 Output |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Voltage | 3.3 V |
| Series | DRV8814 |
| Brand | Texas Instruments |
| Load Voltage Rating | 8 V to 45 V |
| Development Kit | DRV8814EVM |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Rds On - Drain-Source Resistance | 400 mOhms |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.004233 oz |
For more information, please refer to datasheet
Documents
| DRV8814PWP Datasheet |
More Information
The DRV8814 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has two H-bridge drivers, and is intended to drive DC motors. The output driver block for each consists of N-channel power MOSFET’s configured as H-bridges to drive the motor windings. The DRV8814 can supply up to 2.5-A peak or 1.75-A RMS output current (with proper heatsinking at 24 V and 25°C) per H-bridge.
