Texas Instruments

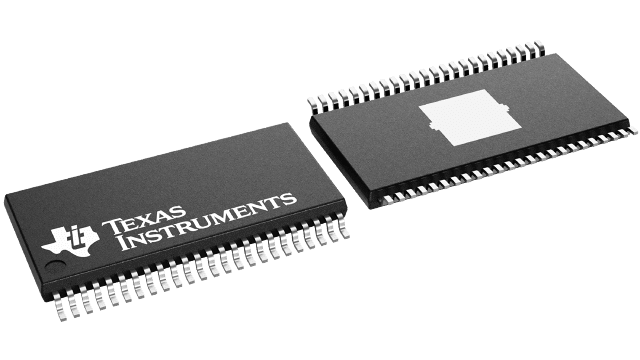

DRV8823QDCARQ1
DRV8823QDCARQ1
Regular price
$1.59 USD
Regular price
Sale price
$1.59 USD
Unit price
per
Couldn't load pickup availability
DRV8823QDCARQ1 Texas Instruments - Yeehing Electronics
Automotive, 34-V, 1-A, bipolar dual stepper or quad H-bridge motor driver with current regulation
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.168 |
| 100 — 249 | 3.398 |
| 250 — 999 | 2.67 |
| 1,000 + | 1.59 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Operating Supply Voltage | 8 V to 32 V |
| Output Current | 1 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-48 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Features | Multi H-bridge |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | DRV8823-Q1 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Rds On - Drain-Source Resistance | 550 mOhms |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.007422 oz |
For more information, please refer to datasheet
Documents
| DRV8823QDCARQ1 Datasheet |
More Information
The DRV8823-Q1 device provides an integrated motor driver solution for printers and other office automation equipment applications.
