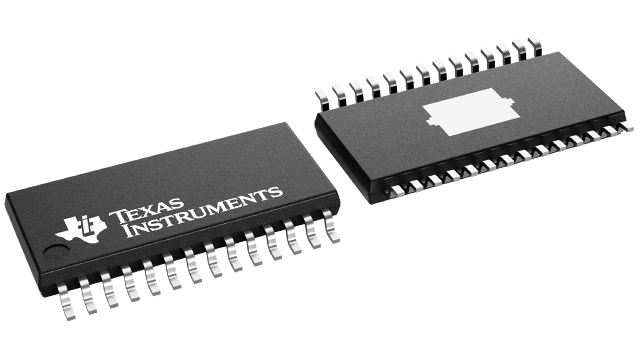

DRV8824PWPR Texas Instruments - Yeehing Electronics

45-V, 1.6-A bipolar stepper motor driver with current regulation and 1/32 microstepping

Pricing (USD)

Quantity	Unit Price
1 — 99	2.951
100 — 249	2.586
250 — 999	1.813
1,000 +	1.02

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Motor / Motion / Ignition Controllers & Drivers
RoHS	Y
Product	Stepper Motor Controllers / Drivers
Type	Stepping Motor Controller
Operating Supply Voltage	8.2 V to 45 V
Output Current	1.1 A
Operating Supply Current	5 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	HTSSOP-28
Packaging	Reel
Features	Integrated micro-stepping
Number of Outputs	2 Output
Operating Frequency	250 kHz
Operating Temperature Range	- 40 C to + 85 C
Output Voltage	0.5 V
Series	DRV8824
Brand	Texas Instruments
Development Kit	DRV8824EVM
Product Type	Motor / Motion / Ignition Controllers & Drivers
Rds On - Drain-Source Resistance	1.28 Ohms
Factory Pack Quantity	2000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.004233 oz

For more information, please refer to datasheet

Documents

DRV8824PWPR Datasheet

More Information

The DRV8824 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has two H-bridge drivers and a microstepping indexer, and is intended to drive a bipolar stepper motor. The output driver block consists of N-channel power MOSFETs configured as full H-bridges to drive the motor windings. The DRV8824 is capable of driving up to 1.6 A of current from each output (with proper heatsinking, at 24 V and 25°C).
