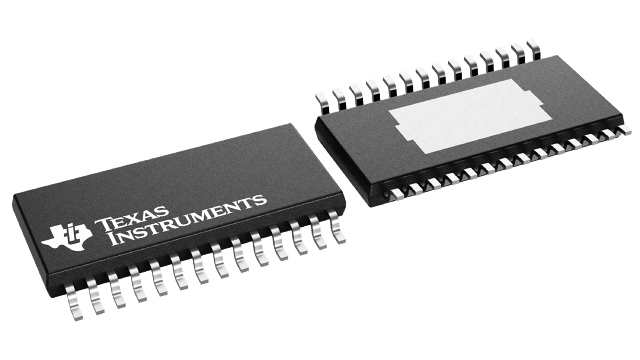

DRV8825PWPR Texas Instruments - Yeehing Electronics
45-V, 2.5-A bipolar stepper motor driver with current regulation and 1/32 microstepping
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.466 |
| 100 — 249 | 3.037 |
| 250 — 999 | 2.13 |
| 1,000 + | 1.20 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Stepper Motor Controllers / Drivers |
| Type | Stepping Motor Controller |
| Operating Supply Voltage | 8.2 V to 45 V |
| Output Current | 1.8 A |
| Operating Supply Current | 5 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-28 |
| Packaging | Reel |
| Features | Integrated micro-stepping |
| Number of Outputs | 2 Output |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | DRV8825 |
| Brand | Texas Instruments |
| Development Kit | DRV8825EVM |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Rds On - Drain-Source Resistance | 400 mOhms |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.004233 oz |
For more information, please refer to datasheet
Documents
| DRV8825PWPR Datasheet |
More Information
The DRV8825 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has two H-bridge drivers and a microstepping indexer, and is intended to drive a bipolar stepper motor. The output driver block consists of N-channel power MOSFETs configured as full H-bridges to drive the motor windings. The DRV8825 is capable of driving up to 2.5 A of current from each output (with proper heat sinking, at 24 V and 25°C).
