Texas Instruments
DRV8832QDGQRQ1
DRV8832QDGQRQ1
Regular price
$0.78 USD
Regular price
Sale price
$0.78 USD
Unit price
per
Couldn't load pickup availability

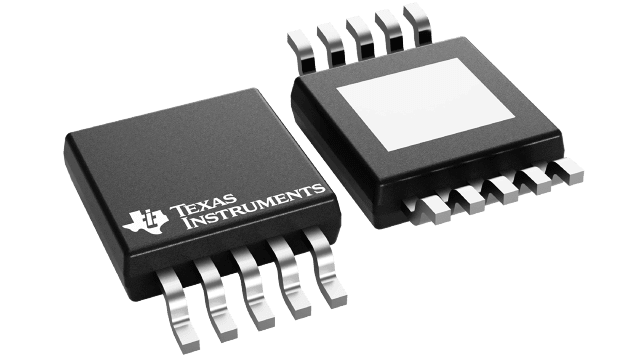

DRV8832QDGQRQ1 Texas Instruments - Yeehing Electronics
Automotive 7-V, 1-A, H-bridge motor driver with voltage regulation
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.262 |
| 100 — 249 | 1.982 |
| 250 — 999 | 1.39 |
| 1,000 + | 0.78 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Brushed DC Motor Drivers |
| Operating Supply Voltage | 2.75 V to 6.8 V |
| Output Current | 1 A |
| Operating Supply Current | 1.4 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | MSOP-PowerPad-10 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Features | Stall/Lock Detection |
| Number of Outputs | 1 Output |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Voltage | 1.285 V |
| Series | DRV8832-Q1 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Rds On - Drain-Source Resistance | 450 mOhms |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000829 oz |
For more information, please refer to datasheet
Documents
| DRV8832QDGQRQ1 Datasheet |
More Information
The DRV8832-Q1 device provides an integrated motor driver solution for battery-powered toys, printers, and other low-voltage or battery-powered motion control applications. The device has one H-bridge driver, and can drive one DC motor or one winding of a stepper motor, as well as other loads like solenoids. The output driver block consists of N-channel and P-channel power MOSFETs configured as an H-bridge to drive the motor winding.
