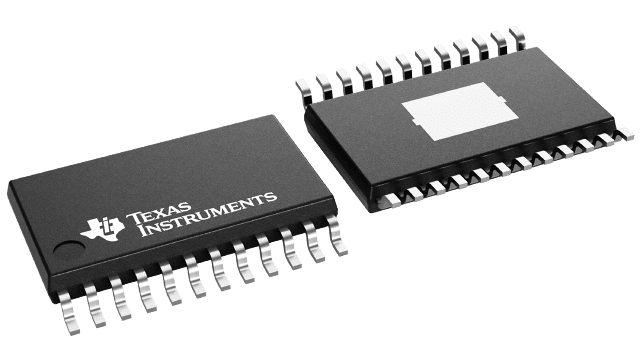

DRV8834PWP Texas Instruments - Yeehing Electronics
11-V, 1.5-A,xa0 dual H-bridge or stepper motor driver with 1/32 microstep indexer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.6 |
| 100 — 249 | 2.278 |
| 250 — 999 | 1.597 |
| 1,000 + | 0.55 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Operating Supply Voltage | 2.5 V to 10.8 V |
| Output Current | 1.5 A |
| Operating Supply Current | 2.4 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-24 |
| Packaging | Reel |
| Features | Current Regulation, Integrated micro-stepping |
| Number of Outputs | 2 Output |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | DRV8834 |
| Brand | Texas Instruments |
| Development Kit | DRV8834EVM |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Rds On - Drain-Source Resistance | 305 mOhms |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.006081 oz |
For more information, please refer to datasheet
Documents
| DRV8834PWP Datasheet |
More Information
The DRV8834 provides a flexible motor driver solution for toys, printers, cameras, and other mechatronic applications. The device has two H-bridge drivers, and is intended to drive a bipolar stepper motor or two DC motors.
