Texas Instruments
DRV8835DSSR
DRV8835DSSR
Regular price
$0.39 USD
Regular price
Sale price
$0.39 USD
Unit price
per
Couldn't load pickup availability

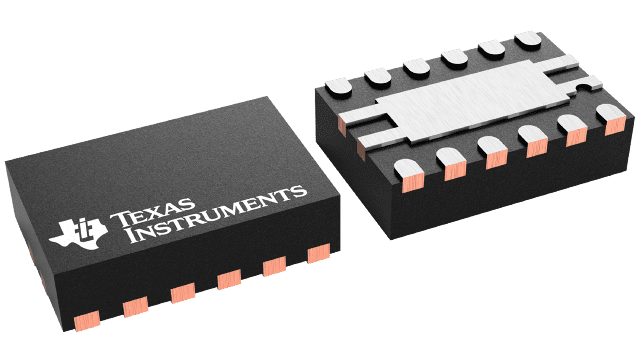

DRV8835DSSR Texas Instruments - Yeehing Electronics
12-V, 1.5-A dual H-bridge motor driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.232 |
| 100 — 249 | 1.018 |
| 250 — 999 | 0.731 |
| 1,000 + | 0.39 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Stepper Motor Controllers / Drivers |
| Type | Bridge Driver |
| Operating Supply Voltage | 2 V to 11 V |
| Output Current | 1.5 A |
| Operating Supply Current | 1.5 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-12 |
| Packaging | Reel |
| Features | Multi H-bridge |
| Number of Outputs | 2 Output |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | DRV8835 |
| Brand | Texas Instruments |
| Load Voltage Rating | 2 V to 11 V |
| Development Kit | DRV8835EVM |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Rds On - Drain-Source Resistance | 305 mOhms |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000469 oz |
For more information, please refer to datasheet
Documents
| DRV8835DSSR Datasheet |
More Information
The DRV8835 provides an integrated motor driver solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. The device has two H-bridge drivers, and drives two DC motors or one stepper motor, as well as other devices like solenoids. The output driver block for each consists of N-channel power MOSFETs configured as an H-bridge to drive the motor winding. An internal charge pump generates gate drive voltages.
