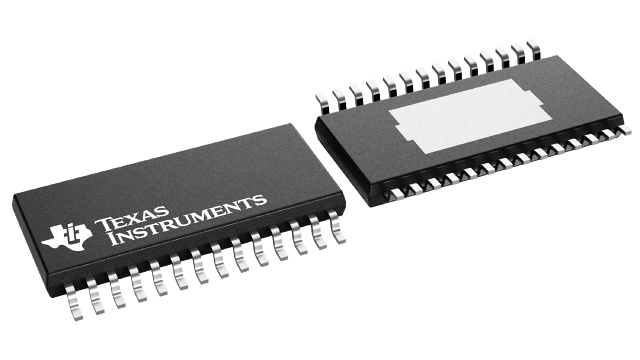

DRV8844PWP Texas Instruments - Yeehing Electronics
60-V, 2.5-A dual H-bridge motor driver with bipolar (+/-30v) supply & independent 1/2-bridge control
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 3.717 |
100 — 249 | 3.03 |
250 — 999 | 2.382 |
1,000 + | 1.41 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Motor / Motion / Ignition Controllers & Drivers |
RoHS | Y |
Type | Half Bridge |
Operating Supply Voltage | 8 V to 60 V |
Output Current | 3.5 A |
Operating Supply Current | 1 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | HTSSOP-28 |
Packaging | Tube |
Features | Independent 1/2-H PWM Control, Split-Rail Support |
Number of Outputs | 2 Output |
Operating Temperature Range | - 40 C to + 85 C |
Series | DRV8844 |
Brand | Texas Instruments |
Development Kit | DRV8844EVM |
Moisture Sensitive | Yes |
Product Type | Motor / Motion / Ignition Controllers & Drivers |
Rds On - Drain-Source Resistance | 480 mOhms |
Factory Pack Quantity | 50 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.004233 oz |
For more information, please refer to datasheet
Documents
DRV8844PWP Datasheet |
More Information
The DRV8844 provides four individually controllable 1/2-H-bridge drivers. It can be used to drive two DC motors, one stepper motor, four solenoids, or other loads. The output driver channel for each channel consists of N-channel power MOSFET’s configured in a 1/2-H-bridge configuration.
