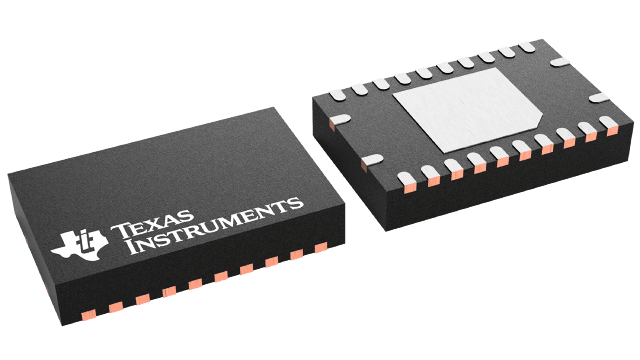

DRV8850RGYR Texas Instruments - Yeehing Electronics
7-V, 8-A H-bridge motor driver with LDO and current feedback
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.136 |
100 — 249 | 0.938 |
250 — 999 | 0.674 |
1,000 + | 0.29 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Motor / Motion / Ignition Controllers & Drivers |
RoHS | Y |
Product | Brushed DC Motor Drivers |
Type | Low Voltage |
Operating Supply Voltage | 2 V to 5.5 V |
Output Current | 5 A |
Operating Supply Current | 2.9 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | VQFN-24 |
Packaging | Reel |
Features | Current Sense Amplifier, On-Chip Power Management |
Number of Outputs | 1 Output |
Operating Frequency | 50 kHz |
Operating Temperature Range | - 40 C to + 85 C |
Series | DRV8850 |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Product Type | Motor / Motion / Ignition Controllers & Drivers |
Rds On - Drain-Source Resistance | 65 mOhms |
Factory Pack Quantity | 3000 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.001926 oz |
For more information, please refer to datasheet
Documents
DRV8850RGYR Datasheet |
More Information
The DRV8850 device provides a motor driver plus LDO voltage regulator solution for consumer products, toys, and other low-voltage or battery-powered motion-control applications. The device has one H-bridge driver to drive a DC motor, a voice-coil actuator, one winding of a stepper motor, a solenoid, or other devices. The output driver block consists of N-channel power MOSFETs configured as an H-bridge to drive the load. An internal charge pump generates the needed gate-drive voltages.
