Texas Instruments
DRV8873HPWPT
DRV8873HPWPT
Regular price
$1.36 USD
Regular price
Sale price
$1.36 USD
Unit price
per
Couldn't load pickup availability

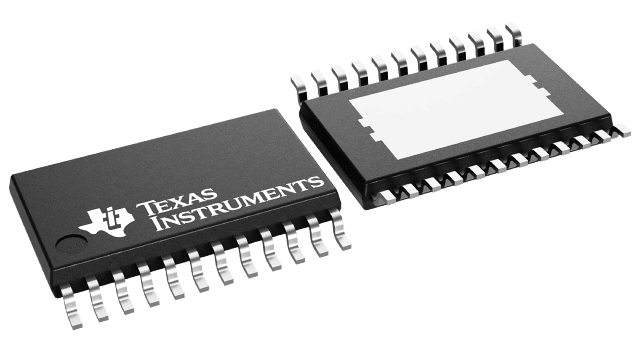

DRV8873HPWPT Texas Instruments - Yeehing Electronics
40-V, 10-A H-bridge motor driver with integrated current sensing & current sense feedback
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.939 |
| 100 — 249 | 3.452 |
| 250 — 999 | 2.42 |
| 1,000 + | 1.36 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Brushed DC Motor Drivers |
| Type | Half Bridge |
| Operating Supply Voltage | 4.5 V to 38 V |
| Output Current | 10 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-24 |
| Packaging | Reel |
| Features | TEXT Integrated Current Sense, Current Sense Amplifier, Open-Load Detection, Hardware Management I/ |
| Number of Outputs | 2 Output |
| Operating Frequency | 100 kHz |
| Series | DRV8873 |
| Brand | Texas Instruments |
| Load Voltage Rating | 38 V |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| DRV8873HPWPT Datasheet |
More Information
The DRV8873 device is an integrated driver IC for driving a brushed DC motor in industrial applications. Two logic inputs control the H-bridge driver, which consists of four N-channel MOSFETs that drive motors bi-directionally with up to 10-A peak current. The device operates from a single power supply and supports a wide input supply range from 4.5 V to 38 V.
