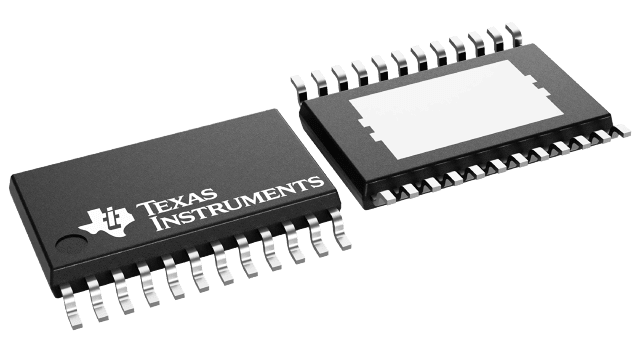

DRV8873SPWPT Texas Instruments - Yeehing Electronics

40-V, 10-A H-bridge motor driver with integrated current sensing & current sense feedback

Pricing (USD)

Quantity	Unit Price
1 — 99	4.091
100 — 249	3.584
250 — 999	2.513
1,000 +	3.43

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Motor / Motion / Ignition Controllers & Drivers
RoHS	Y
Product	Brushed DC Motor Drivers
Type	Half Bridge
Operating Supply Voltage	4.5 V to 38 V
Output Current	10 A
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	HTSSOP-24
Packaging	Reel
Features	TEXT Integrated Current Sense, Current Sense Amplifier, Open-Load Detection, Hardware Management I/
Number of Outputs	2 Output
Operating Frequency	100 kHz
Series	DRV8873
Brand	Texas Instruments
Load Voltage Rating	38 V
Moisture Sensitive	Yes
Product Type	Motor / Motion / Ignition Controllers & Drivers
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

DRV8873SPWPT Datasheet

More Information

The DRV8873 device is an integrated driver IC for driving a brushed DC motor in industrial applications. Two logic inputs control the H-bridge driver, which consists of four N-channel MOSFETs that drive motors bi-directionally with up to 10-A peak current. The device operates from a single power supply and supports a wide input supply range from 4.5 V to 38 V.
