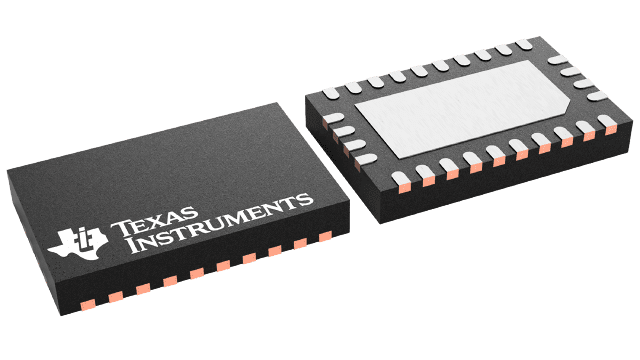

DRV8881ERHRT Texas Instruments - Yeehing Electronics
45-V, 2-A bipolar stepper or dual h-bridge motor driver with current regulation & smart tune
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.02 |
| 100 — 249 | 3.278 |
| 250 — 999 | 2.576 |
| 1,000 + | 1.53 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| DRV8881ERHRT Datasheet |
More Information
The DRV8881 is a bipolar stepper or brushed-DC motor driver for industrial applications. The device output stage consists of two N-channel power MOSFET H-bridge drivers. The DRV8881 is capable of driving up to 2.5-A peak current or 1.4-A rms current per H-bridge (with proper PCB ground plane for thermal dissipation and at 24 V and TA = 25°C).
