Texas Instruments

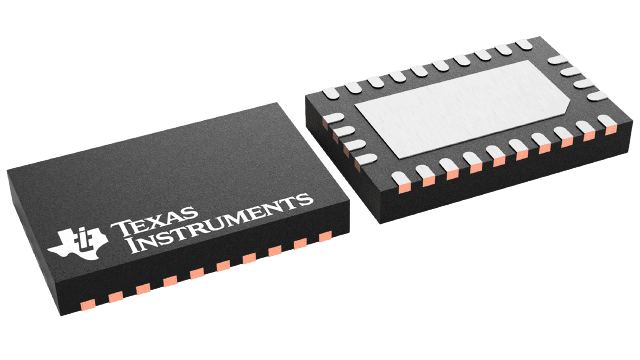

DRV8881PRHRT
DRV8881PRHRT
Regular price
$1.53 USD
Regular price
Sale price
$1.53 USD
Unit price
per
Couldn't load pickup availability
DRV8881PRHRT Texas Instruments - Yeehing Electronics
45-V, 2-A bipolar stepper or dual h-bridge motor driver with current regulation & smart tune
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.02 |
| 100 — 249 | 3.278 |
| 250 — 999 | 2.576 |
| 1,000 + | 1.53 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Stepper Motor Controllers / Drivers |
| Type | Half Bridge |
| Operating Supply Voltage | 6.5 V to 45 V |
| Output Current | 2.5 A |
| Operating Supply Current | 8 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-28 |
| Packaging | Reel |
| Features | Smart Tune, Current Regulation, Multi H-bridge, PW interface |
| Number of Outputs | 2 Output |
| Operating Frequency | 100 kHz |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | DRV8881 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001612 oz |
For more information, please refer to datasheet
Documents
| DRV8881PRHRT Datasheet |
More Information
The DRV8881 is a bipolar stepper or brushed-DC motor driver for industrial applications. The device output stage consists of two N-channel power MOSFET H-bridge drivers. The DRV8881 is capable of driving up to 2.5-A peak current or 1.4-A rms current per H-bridge (with proper PCB ground plane for thermal dissipation and at 24 V and TA = 25°C).
