Texas Instruments

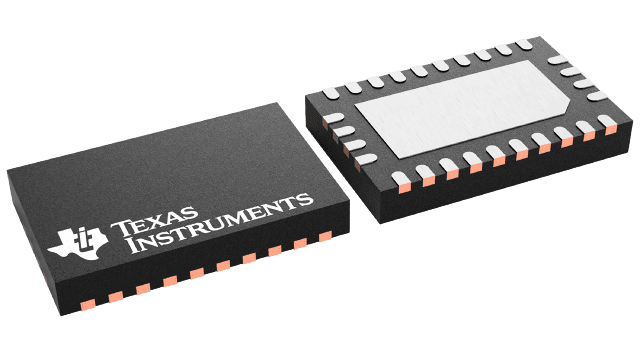

DRV8885RHRR
DRV8885RHRR
Regular price
$0.85 USD
Regular price
Sale price
$0.85 USD
Unit price
per
Couldn't load pickup availability
DRV8885RHRR Texas Instruments - Yeehing Electronics
37-V, 1.5-A bipolar stepper motor driver with integrated current sensing & 1/16 microstepping
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.44 |
| 100 — 249 | 2.138 |
| 250 — 999 | 1.499 |
| 1,000 + | 0.85 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Stepper Motor Controllers / Drivers |
| Type | Half Bridge |
| Operating Supply Voltage | 8 V to 37 V |
| Output Current | 1.5 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-28 |
| Packaging | Reel |
| Features | Integrated Current Sense, Integrated micro-stepping |
| Number of Outputs | 2 Output |
| Operating Frequency | 100 kHz |
| Series | DRV8885 |
| Brand | Texas Instruments |
| Load Voltage Rating | 37 V |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| DRV8885RHRR Datasheet |
More Information
The DRV8885 is a stepper motor driver for industrial equipment applications. The device has two N-channel power MOSFET H-bridge drivers, a microstepping indexer, and integrated current sense. The DRV8885 is capable of driving up to 1.5 A full scale or 1.0 A rms output current (depending on proper PCB ground plane for thermal dissipation and at 24 V and TA = 25°C).
