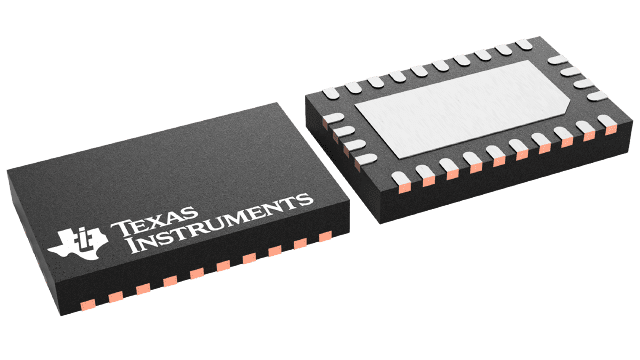

DRV8885RHRT Texas Instruments - Yeehing Electronics

37-V, 1.5-A bipolar stepper motor driver with integrated current sensing & 1/16 microstepping

Pricing (USD)

Quantity	Unit Price
1 — 99	3.606
100 — 249	3.159
250 — 999	2.215
1,000 +	1.25

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Motor / Motion / Ignition Controllers & Drivers
RoHS	Y
Product	Stepper Motor Controllers / Drivers
Type	Half Bridge
Operating Supply Voltage	8 V to 37 V
Output Current	1.5 A
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	WQFN-28
Packaging	Reel
Features	Integrated Current Sense, Integrated micro-stepping
Number of Outputs	2 Output
Operating Frequency	100 kHz
Series	DRV8885
Brand	Texas Instruments
Load Voltage Rating	37 V
Moisture Sensitive	Yes
Product Type	Motor / Motion / Ignition Controllers & Drivers
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

DRV8885RHRT Datasheet

More Information

The DRV8885 is a stepper motor driver for industrial equipment applications. The device has two N-channel power MOSFET H-bridge drivers, a microstepping indexer, and integrated current sense. The DRV8885 is capable of driving up to 1.5 A full scale or 1.0 A rms output current (depending on proper PCB ground plane for thermal dissipation and at 24 V and TA = 25°C).
