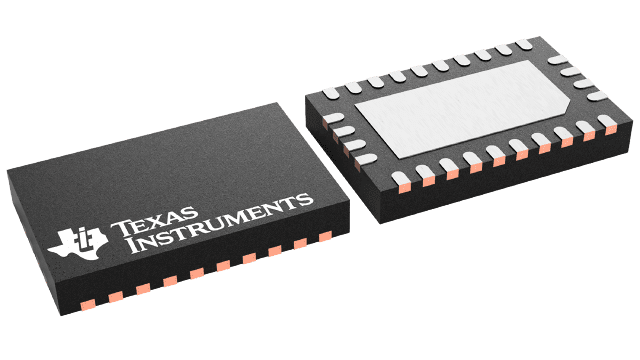

DRV8886RHRR Texas Instruments - Yeehing Electronics
37-V, 2-A bipolar stepper motor driver with integrated current sensing & 1/16 microstepping
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.672 |
100 — 249 | 2.342 |
250 — 999 | 1.642 |
1,000 + | 0.93 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Motor / Motion / Ignition Controllers & Drivers |
RoHS | Y |
Product | Stepper Motor Controllers / Drivers |
Type | Half Bridge |
Operating Supply Voltage | 8 V to 37 V |
Output Current | 2 A |
Operating Supply Current | 5 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Mounting Style | SMD/SMT |
Package / Case | WQFN-28 |
Packaging | Reel |
Features | Integrated Current Sense, Integrated micro-stepping |
Number of Outputs | 2 Output |
Series | DRV8886 |
Brand | Texas Instruments |
Load Voltage Rating | 37 V |
Moisture Sensitive | Yes |
Product Type | Motor / Motion / Ignition Controllers & Drivers |
Factory Pack Quantity | 3000 |
Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
DRV8886RHRR Datasheet |
More Information
The DRV8886 is a stepper motor driver for industrial and consumer end equipment applications. The device is fully integrated with two N-channel power MOSFET H-bridge drivers, a microstepping indexer, and integrated current sensing. The DRV8886 is capable of driving up to 2-A full scale or 1.4-A rms output current (24-V and TA = 25°C, dependent on PCB design).
