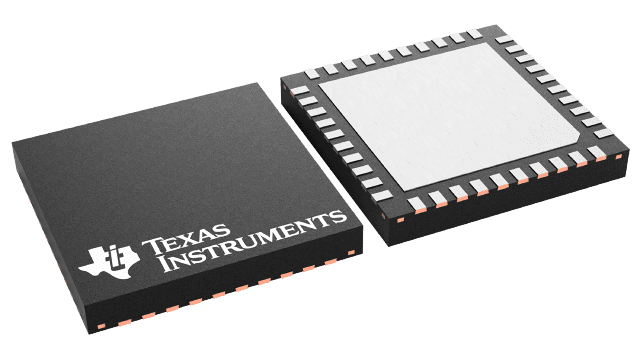

DS10CP154ATSQX/NOPB Texas Instruments - Yeehing Electronics

1.5-Gbps 4x4 LVDS crosspoint switch

Pricing (USD)

Quantity	Unit Price
1 — 99	7.303
100 — 249	5.954
250 — 999	4.679
1,000 +	2.78

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog & Digital Crosspoint ICs
RoHS	Y
Series	DS10CP154A
Product	Digital Crosspoint Switches
Configuration	4 x 4
Data Rate	1.5 Gb/s
Input Type	CML, LVDS, LVPECL
Output Type	LVDS
Operating Supply Voltage	3.3 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	WQFN-40
Qualification	AEC-Q100
Packaging	Reel
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Analog & Digital Crosspoint ICs
Factory Pack Quantity	2500
Subcategory	Communication & Networking ICs
Supply Voltage - Max	3.6 V
Supply Voltage - Min	3 V
Unit Weight	0.001929 oz

For more information, please refer to datasheet

Documents

DS10CP154ATSQX/NOPB Datasheet

More Information

The DS10CP154A is a 1.5 Gbps 4x4 LVDS crosspoint switch optimized for high-speed signal routing and switching over FR-4 printed circuit board backplanes and balanced cables. Fully differential signal paths ensure exceptional signal integrity and noise immunity. The non-blocking architecture allows connections of any input to any output or outputs. The switch configuration can be accomplished via external pins or the System Management Bus (SMBus) interface. In addition, the SMBus circuitry enables the loss of signal (LOS) monitors that can inform a system of the presence of an open inputs condition (e.g. disconnected cable).
