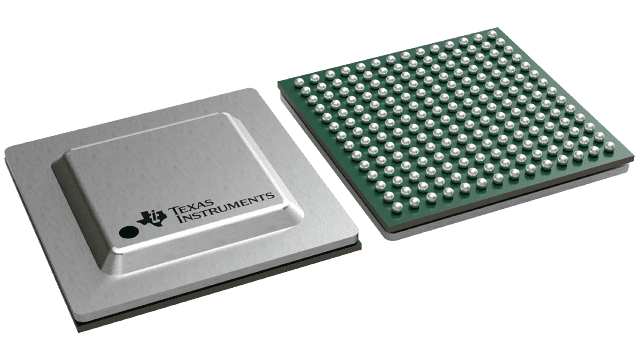

DS110DF1610FB/NOPB


YeeHing #: Y007-DS110DF1610FB/NOPB
Inventory: 3200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

DS110DF1610FB/NOPB Texas Instruments - Yeehing Electronics

8.5 to 11.3-Gbps 16 channel retimer

Pricing (USD)

Quantity Unit Price
1 — 99 41.94
100 — 249 37.28
250 — 999 30.647
1,000 + 19.19

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Interface - Signal Buffers, Repeaters
RoHS Y
Product Retimers
Propagation Delay Time 505 ps
Maximum Clock Frequency 400 kHz
Operating Supply Voltage 2.5 V
Minimum Operating Temperature - 10 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case FCBGA-196
Packaging Tray
Application Front Port, Backplane
Data Rate 8.5 Gb/s to 11.3 Gb/s
Output Type Open Drain
Series DS110DF1610
Type Multi-Rate Retimer
Brand Texas Instruments
Interface Type JTAG, SMBus
Number of Channels 16 Channel
Ciss - Input Capacitance 5 pF
Moisture Sensitive Yes
Product Type Signal Buffers, Repeaters
Factory Pack Quantity 126
Subcategory Interface ICs
Supply Voltage - Max 2.625 V
Supply Voltage - Min 2.375 V
Unit Weight 0.103783 oz

For more information, please refer to datasheet

Documents

DS110DF1610FB/NOPB Datasheet

More Information

The DS110DF1610 is a sixteen-channel multi-rate retimer with integrated signal conditioning. The device includes a full adaptive Continuous Time Linear Equalizer (CTLE), Decision Feedback Equalizer (DFE), clock and data recovery (CDR), and a transmit FIR filter to enhance the reach and robustness over long, lossy, crosstalk impaired high speed serial links to achieve BER < 1×10-15.
