Texas Instruments
DS110DF1610FBE/NOPB
DS110DF1610FBE/NOPB
Regular price
$19.19 USD
Regular price
Sale price
$19.19 USD
Unit price
per
Couldn't load pickup availability

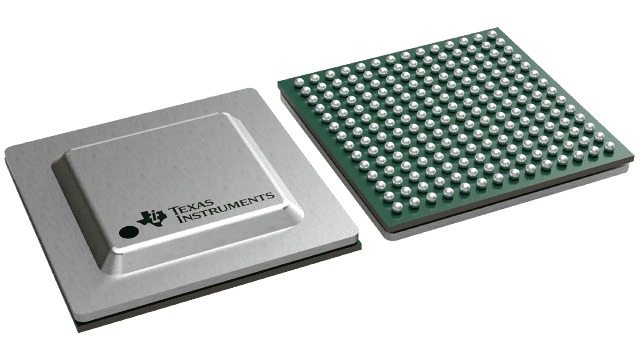

DS110DF1610FBE/NOPB Texas Instruments - Yeehing Electronics
8.5 to 11.3-Gbps 16 channel retimer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 41.94 |
| 100 — 249 | 37.28 |
| 250 — 999 | 30.647 |
| 1,000 + | 19.19 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Interface - Signal Buffers, Repeaters |
| RoHS | Y |
| Product | Retimers |
| Propagation Delay Time | 505 ps |
| Maximum Clock Frequency | 400 kHz |
| Operating Supply Voltage | 2.5 V |
| Minimum Operating Temperature | - 10 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | FCBGA-196 |
| Packaging | Tray |
| Application | Front Port, Backplane |
| Data Rate | 8.5 Gb/s to 11.3 Gb/s |
| Output Type | Open Drain |
| Series | DS110DF1610 |
| Type | Multi-Rate Retimer |
| Brand | Texas Instruments |
| Interface Type | JTAG, SMBus |
| Number of Channels | 16 Channel |
| Ciss - Input Capacitance | 5 pF |
| Moisture Sensitive | Yes |
| Product Type | Signal Buffers, Repeaters |
| Factory Pack Quantity | 126 |
| Subcategory | Interface ICs |
| Supply Voltage - Max | 2.625 |
| Supply Voltage - Min | 2.375 V |
For more information, please refer to datasheet
Documents
| DS110DF1610FBE/NOPB Datasheet |
More Information
The DS110DF1610 is a sixteen-channel multi-rate retimer with integrated signal conditioning. The device includes a full adaptive Continuous Time Linear Equalizer (CTLE), Decision Feedback Equalizer (DFE), clock and data recovery (CDR), and a transmit FIR filter to enhance the reach and robustness over long, lossy, crosstalk impaired high speed serial links to achieve BER < 1×10-15.
