DS125BR111RTWR


YeeHing #: Y007-DS125BR111RTWR
Inventory: 8000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

DS125BR111RTWR Texas Instruments - Yeehing Electronics

12.5-Gbps 2-channel redrivers with input equalization

Pricing (USD)

Quantity Unit Price
1 — 99 7.669
100 — 249 6.699
250 — 999 5.165
1,000 + 3.70

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Interface - Signal Buffers, Repeaters
RoHS Y
Product Repeaters
Propagation Delay Time 70 ps
Maximum Clock Frequency 6 GHz
Operating Supply Voltage 2.5 V, 3.3 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT

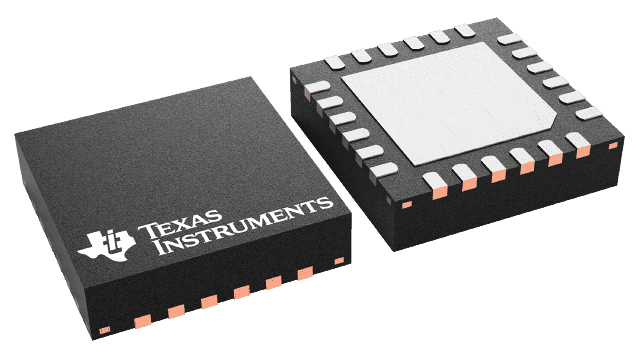

Package / Case WQFN-24
Packaging Reel
Application Front Port, Backplane, Peripheral I/O
Data Rate 12.5 Gb/s
Input Type AC-Coupled, CML
Output Type AC-Coupled, CML
Series DS125BR111
Type Linear Repeater
Brand Texas Instruments
Interface Type Serial, I2C
Number of Channels 2 Channel
Ciss - Input Capacitance 5 pF
Moisture Sensitive Yes
Operating Supply Current 52 mA
Product Type Signal Buffers, Repeaters
Factory Pack Quantity 1000
Subcategory Interface ICs
Supply Voltage - Max 3.6 V
Supply Voltage - Min 2.375 V
Unit Weight 0.001379 oz

For more information, please refer to datasheet

Documents

DS125BR111RTWR Datasheet

More Information

The DS125BR111 is an extremely low power high performance repeater/redriver designed to support 1-lane carrying high speed interface up to 12.5 Gbps. The receiver's continuous time linear equalizer (CTLE) provides a boost of 3-10 dB at 6 GHz in each channel. When operating in SAS-3 or PCIe Gen-3 applications, the DS125BR111 preserves transmit signal characteristics allowing the host controller and the end point to negotiate transmit equalizer coefficients. Transparency to the link training protocol maximizes the flexibility of the physical placement of the device within the interconnect and improves overall channel performance.
